ThreeWayValve

Process Description

Three-way control valve for flow mixing (two inlets, one outlet) or diverting (one inlet, two outlets) applications. Enables proportional flow splitting and stream mixing control with dead-time compensation for industrial process control.

Key Equations

Flow Coefficient Splitting:

\[C_{v,A} = C_{v,max} \times (1 - x)\]

\[C_{v,B} = C_{v,max} \times x\]

Flow Calculations:

\[Q = C_v \sqrt{\frac{\Delta P}{\rho}}\]

Mass Balance:

• Mixing: \(Q_{out} = Q_{inlet1} + Q_{inlet2}\)

• Diverting: \(Q_{inlet} = Q_{outlet1} + Q_{outlet2}\)

Temperature Mixing:

\[T_{mixed} = \frac{\dot{m}_1 T_1 + \dot{m}_2 T_2}{\dot{m}_1 + \dot{m}_2}\]

Process Parameters

Parameter	Typical Range	Units	Description
Cv_max	10-500	gpm/psi^0.5	Maximum single-path flow coefficient
Position	0-1	fraction	Flow split ratio
Dead Time	0.5-5.0	s	Actuator response delay
Time Constant	1-10	s	Actuator time constant
Flow Split	0-100%	%	Percentage to each outlet

Industrial Example

"""
Industrial Example: Three-Way Valve in Chemical Process
Mixing valve for reactor temperature control - Hot/Cold feed blending
"""

import numpy as np
import matplotlib.pyplot as plt
import sys
import os

# Add the sproclib path
sys.path.insert(0, os.path.join(os.path.dirname(__file__), '..', '..', '..'))

from sproclib.unit.valve.ThreeWayValve import ThreeWayValve


def main():
    print("=" * 65)
    print("THREE-WAY VALVE - INDUSTRIAL EXAMPLE")
    print("Reactor Feed Temperature Control - Hot/Cold Stream Mixing")
    print("=" * 65)

    # Industrial mixing valve for reactor feed temperature control
    mixing_valve = ThreeWayValve(
        Cv_max=180.0,           # gpm/psi^0.5 (per path)
        valve_config="mixing",   # Two inlets, one outlet
        dead_time=1.5,          # s (pneumatic actuator)
        time_constant=3.0,      # s
        name="ReactorFeedMixer"
    )

    # Industrial diverting valve for product distribution
    diverting_valve = ThreeWayValve(
        Cv_max=120.0,
        valve_config="diverting",  # One inlet, two outlets
        dead_time=1.0,
        time_constant=2.5,
        name="ProductDiverter"
    )

    print("\nMIXING VALVE SPECIFICATIONS:")
    print("-" * 35)
    print(f"Configuration: {mixing_valve.valve_config}")
    print(f"Max Cv per path: {mixing_valve.Cv_max:.1f} gpm/psi^0.5")
    print(f"Dead Time: {mixing_valve.dead_time:.1f} s")
    print(f"Time Constant: {mixing_valve.time_constant:.1f} s")
    print(f"State Variables: {mixing_valve.state_names}")

    # Process conditions for mixing application
    print("\nMIXING APPLICATION - PROCESS CONDITIONS:")
    print("-" * 45)
    T_hot = 120.0      # °C (hot feed stream)
    T_cold = 25.0      # °C (cold feed stream)
    T_target = 85.0    # °C (target reactor feed temperature)

    P_hot = 4.5e5      # Pa (4.5 bar hot stream pressure)
    P_cold = 4.2e5     # Pa (4.2 bar cold stream pressure)
    P_mixed = 1.8e5    # Pa (1.8 bar to reactor)
    rho = 890.0        # kg/m³ (organic solvent at average temp)

    print(f"Hot Stream: {T_hot:.1f} °C at {P_hot/1e5:.1f} bar")
    print(f"Cold Stream: {T_cold:.1f} °C at {P_cold/1e5:.1f} bar")
    print(f"Target Mixed: {T_target:.1f} °C at {P_mixed/1e5:.1f} bar")
    print(f"Fluid Density: {rho:.1f} kg/m³")

    # Calculate required mixing ratio for target temperature
    mixing_ratio = (T_target - T_cold) / (T_hot - T_cold)
    required_position = 1.0 - mixing_ratio  # Position for cold stream fraction

    print(f"\nTEMPERATURE MIXING CALCULATION:")
    print("-" * 35)
    print(f"Required Hot Fraction: {mixing_ratio:.3f}")
    print(f"Required Cold Fraction: {1-mixing_ratio:.3f}")
    print(f"Valve Position: {required_position:.3f}")

    # Analyze mixing valve performance
    print("\nMIXING VALVE PERFORMANCE ANALYSIS:")
    print("-" * 40)

    positions = np.linspace(0, 1, 11)
    temperatures = []
    total_flows = []
    hot_flows = []
    cold_flows = []

    print("Position | Hot% | Cold% | Hot Flow | Cold Flow | Total | Mixed T")
    print("         |      |       | (m³/h)   | (m³/h)    | (m³/h)| (°C)")
    print("-" * 70)

    for pos in positions:
        # Calculate flows
        u = np.array([pos, P_hot, P_cold, P_mixed, rho])
        steady_state = mixing_valve.steady_state(u)
        _, total_flow = steady_state

        # Calculate individual stream flows
        Cv_A, Cv_B = mixing_valve._calculate_cv_split(pos)
        Cv_si = 6.309e-5

        flow_hot = Cv_A * Cv_si * np.sqrt((P_hot - P_mixed) / rho)
        flow_cold = Cv_B * Cv_si * np.sqrt((P_cold - P_mixed) / rho)

        # Mass-weighted temperature mixing
        mass_hot = flow_hot * rho
        mass_cold = flow_cold * rho
        total_mass = mass_hot + mass_cold

        if total_mass > 0:
            T_mixed = (mass_hot * T_hot + mass_cold * T_cold) / total_mass
        else:
            T_mixed = T_cold

        # Convert flows to m³/h
        flow_hot_m3h = flow_hot * 3600
        flow_cold_m3h = flow_cold * 3600
        total_flow_m3h = total_flow * 3600

        # Flow percentages
        hot_percent = (flow_hot / total_flow * 100) if total_flow > 0 else 0
        cold_percent = (flow_cold / total_flow * 100) if total_flow > 0 else 0

        temperatures.append(T_mixed)
        total_flows.append(total_flow_m3h)
        hot_flows.append(flow_hot_m3h)
        cold_flows.append(flow_cold_m3h)

        print(f"{pos:8.1f} | {hot_percent:4.0f} | {cold_percent:5.0f} | "
              f"{flow_hot_m3h:8.1f} | {flow_cold_m3h:9.1f} | "
              f"{total_flow_m3h:5.1f} | {T_mixed:7.1f}")

    # Diverting valve analysis
    print("\n" + "=" * 65)
    print("DIVERTING VALVE APPLICATION - PRODUCT DISTRIBUTION")
    print("=" * 65)

    print(f"\nDIVERTING VALVE SPECIFICATIONS:")
    print("-" * 35)
    print(f"Configuration: {diverting_valve.valve_config}")
    print(f"Max Cv per path: {diverting_valve.Cv_max:.1f} gpm/psi^0.5")

    # Process conditions for diverting application
    P_feed = 5.0e5        # Pa (5 bar feed pressure)
    P_product1 = 2.0e5    # Pa (2 bar to Product Tank 1)
    P_product2 = 1.5e5    # Pa (1.5 bar to Product Tank 2)
    rho_product = 950.0   # kg/m³ (product density)

    print(f"\nDIVERTING PROCESS CONDITIONS:")
    print("-" * 35)
    print(f"Feed Pressure: {P_feed/1e5:.1f} bar")
    print(f"Product 1 Pressure: {P_product1/1e5:.1f} bar")
    print(f"Product 2 Pressure: {P_product2/1e5:.1f} bar")
    print(f"Product Density: {rho_product:.1f} kg/m³")

    print("\nDIVERTING VALVE PERFORMANCE:")
    print("-" * 35)
    print("Position | Product1 | Product2 | Total  | Split Ratio")
    print("         | (m³/h)   | (m³/h)   | (m³/h) | (P1:P2)")
    print("-" * 55)

    product1_flows = []
    product2_flows = []

    for pos in positions:
        u = np.array([pos, P_feed, P_product1, P_product2, rho_product])
        steady_state = diverting_valve.steady_state(u)
        _, flow1, flow2 = steady_state

        flow1_m3h = flow1 * 3600
        flow2_m3h = flow2 * 3600
        total_m3h = flow1_m3h + flow2_m3h

        product1_flows.append(flow1_m3h)
        product2_flows.append(flow2_m3h)

        if flow2_m3h > 0:
            split_ratio = flow1_m3h / flow2_m3h
        else:
            split_ratio = float('inf')

        print(f"{pos:8.1f} | {flow1_m3h:8.1f} | {flow2_m3h:8.1f} | "
              f"{total_m3h:6.1f} | {split_ratio:8.2f}")

    # Engineering validation
    print("\nENGINEERING VALIDATION:")
    print("-" * 25)

    # Test specific operating point for mixing valve
    test_pos = required_position
    u_test = np.array([test_pos, P_hot, P_cold, P_mixed, rho])
    steady_test = mixing_valve.steady_state(u_test)
    _, flow_test = steady_test

    print(f"Target temperature: {T_target:.1f} °C")
    print(f"Required position: {test_pos:.3f}")
    print(f"Achieved flow: {flow_test * 3600:.1f} m³/h")

    # Mass balance check
    Cv_A_test, Cv_B_test = mixing_valve._calculate_cv_split(test_pos)
    flow_hot_test = Cv_A_test * 6.309e-5 * np.sqrt((P_hot - P_mixed) / rho)
    flow_cold_test = Cv_B_test * 6.309e-5 * np.sqrt((P_cold - P_mixed) / rho)

    mass_balance_error = abs(flow_test - (flow_hot_test + flow_cold_test))
    print(f"Mass balance error: {mass_balance_error:.2e} m³/s")

    # Control scenario simulation
    print("\nCONTROL SCENARIO SIMULATION:")
    print("-" * 35)
    print("Temperature control during process upset")

    time_sim = np.linspace(0, 7200, 721)  # 2 hours, 10s intervals
    temp_setpoint = []
    valve_position = []
    mixed_temperature = []

    for i, t in enumerate(time_sim):
        # Setpoint changes during operation
        if t < 1800:  # First 30 min
            setpoint = 85.0
        elif t < 3600:  # Next 30 min
            setpoint = 90.0
        elif t < 5400:  # Next 30 min
            setpoint = 80.0
        else:  # Final 30 min
            setpoint = 85.0

        temp_setpoint.append(setpoint)

        # Calculate required position for setpoint
        required_ratio = (setpoint - T_cold) / (T_hot - T_cold)
        required_pos = 1.0 - required_ratio
        valve_position.append(required_pos)

        # Calculate actual mixed temperature
        u_sim = np.array([required_pos, P_hot, P_cold, P_mixed, rho])
        steady_sim = mixing_valve.steady_state(u_sim)
        _, total_flow_sim = steady_sim

        # Individual flows and temperature
        Cv_A_sim, Cv_B_sim = mixing_valve._calculate_cv_split(required_pos)
        flow_hot_sim = Cv_A_sim * 6.309e-5 * np.sqrt((P_hot - P_mixed) / rho)
        flow_cold_sim = Cv_B_sim * 6.309e-5 * np.sqrt((P_cold - P_mixed) / rho)

        mass_hot_sim = flow_hot_sim * rho
        mass_cold_sim = flow_cold_sim * rho
        total_mass_sim = mass_hot_sim + mass_cold_sim

        if total_mass_sim > 0:
            T_actual = (mass_hot_sim * T_hot + mass_cold_sim * T_cold) / total_mass_sim
        else:
            T_actual = T_cold

        mixed_temperature.append(T_actual)

    # Report control performance
    temp_error = np.array(mixed_temperature) - np.array(temp_setpoint)
    rms_error = np.sqrt(np.mean(temp_error**2))

    print(f"RMS Temperature Error: {rms_error:.2f} °C")
    print(f"Max Temperature Error: {np.max(np.abs(temp_error)):.2f} °C")
    print(f"Position Range: {np.min(valve_position):.3f} - {np.max(valve_position):.3f}")

    # Valve descriptions
    print("\nVALVE DESCRIPTIONS:")
    print("-" * 25)

    mixing_desc = mixing_valve.describe()
    print(f"Mixing Valve - Type: {mixing_desc['type']}")
    print(f"Applications: {', '.join(mixing_desc['applications'][:2])}")

    diverting_desc = diverting_valve.describe()
    print(f"Diverting Valve - Type: {diverting_desc['type']}")
    print(f"Applications: {', '.join(diverting_desc['applications'][:2])}")

    print("\n" + "=" * 65)
    print("EXAMPLE COMPLETED - Check plots for visual analysis")
    print("=" * 65)

    return {
        'mixing': {
            'positions': positions,
            'temperatures': temperatures,
            'total_flows': total_flows,
            'hot_flows': hot_flows,
            'cold_flows': cold_flows
        },
        'diverting': {
            'positions': positions,
            'product1_flows': product1_flows,
            'product2_flows': product2_flows
        },
        'simulation': {
            'time': time_sim,
            'setpoint': temp_setpoint,
            'valve_position': valve_position,
            'mixed_temperature': mixed_temperature
        }
    }


if __name__ == "__main__":
    data = main()

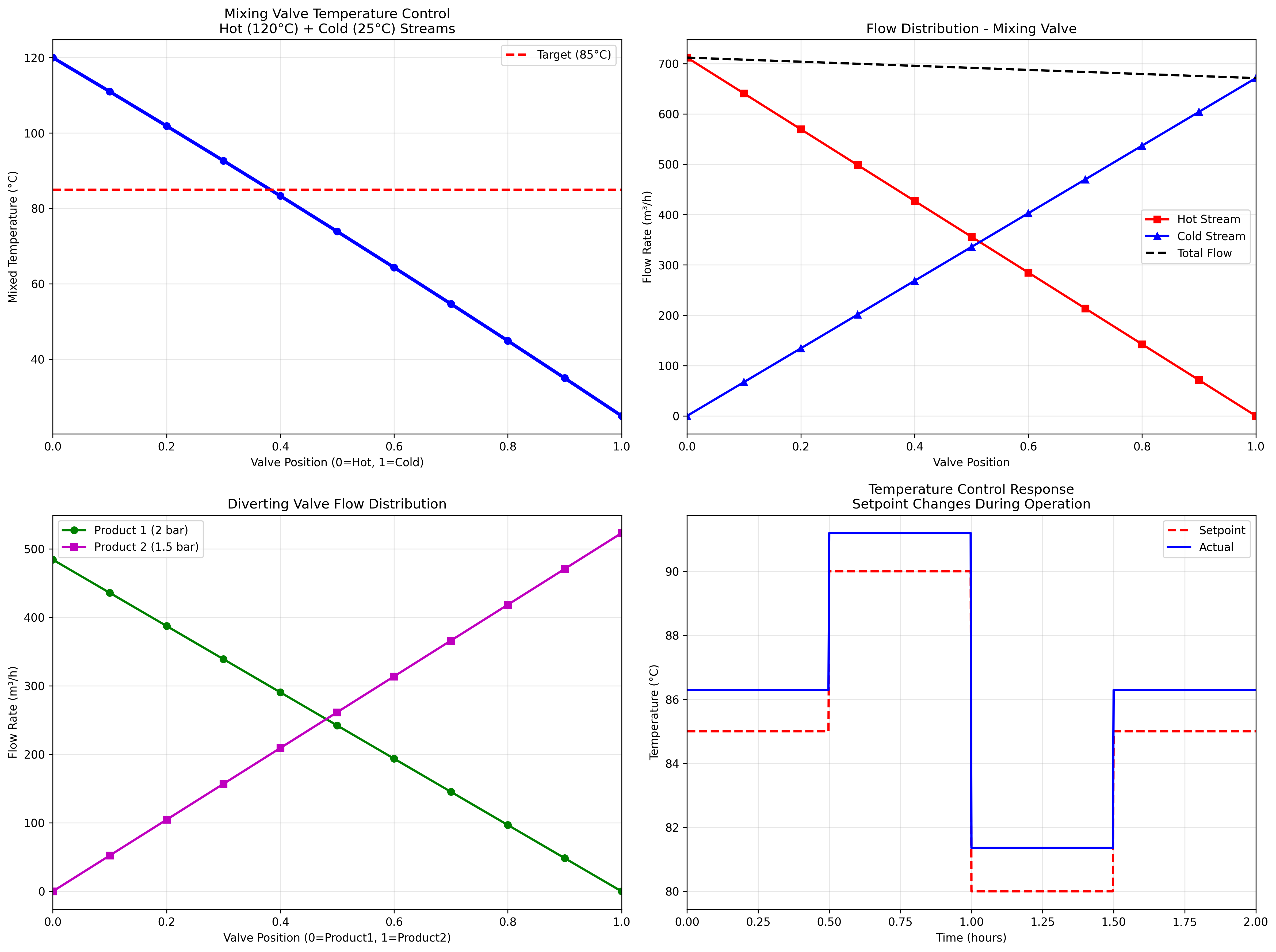

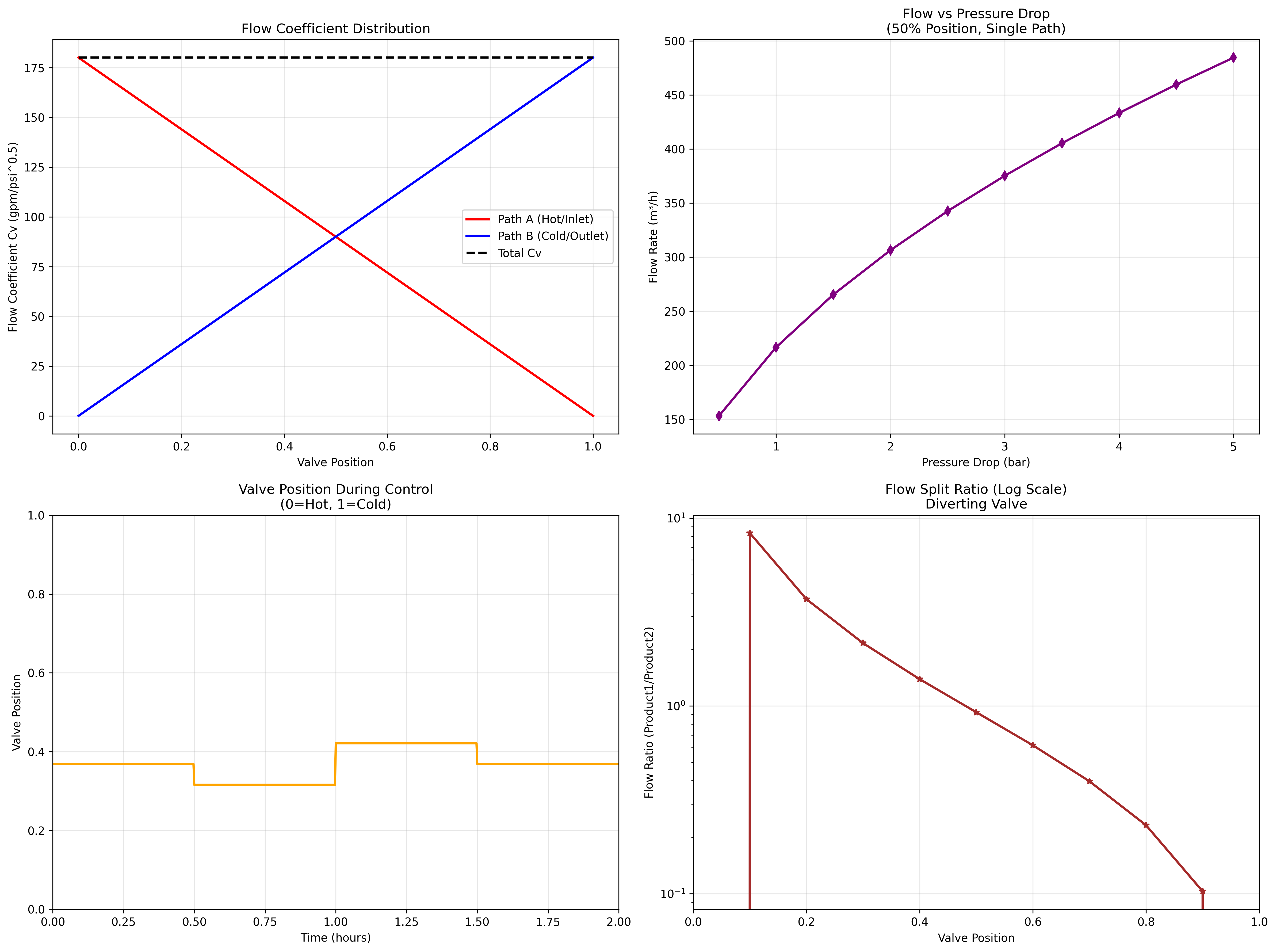

    # Create comprehensive plots
    plt.style.use('default')
    fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(2, 2, figsize=(16, 12))

    # Plot 1: Mixing valve temperature control
    ax1.plot(data['mixing']['positions'], data['mixing']['temperatures'],
             'b-', linewidth=3, marker='o', markersize=6)
    ax1.axhline(y=85, color='r', linestyle='--', linewidth=2, label='Target (85°C)')
    ax1.set_xlabel('Valve Position (0=Hot, 1=Cold)')
    ax1.set_ylabel('Mixed Temperature (°C)')
    ax1.set_title('Mixing Valve Temperature Control\nHot (120°C) + Cold (25°C) Streams')
    ax1.legend()
    ax1.grid(True, alpha=0.3)
    ax1.set_xlim(0, 1)

    # Plot 2: Flow distribution in mixing
    ax2.plot(data['mixing']['positions'], data['mixing']['hot_flows'],
             'r-', linewidth=2, marker='s', label='Hot Stream')
    ax2.plot(data['mixing']['positions'], data['mixing']['cold_flows'],
             'b-', linewidth=2, marker='^', label='Cold Stream')
    ax2.plot(data['mixing']['positions'], data['mixing']['total_flows'],
             'k--', linewidth=2, label='Total Flow')
    ax2.set_xlabel('Valve Position')
    ax2.set_ylabel('Flow Rate (m³/h)')
    ax2.set_title('Flow Distribution - Mixing Valve')
    ax2.legend()
    ax2.grid(True, alpha=0.3)
    ax2.set_xlim(0, 1)

    # Plot 3: Diverting valve performance
    ax3.plot(data['diverting']['positions'], data['diverting']['product1_flows'],
             'g-', linewidth=2, marker='o', label='Product 1 (2 bar)')
    ax3.plot(data['diverting']['positions'], data['diverting']['product2_flows'],
             'm-', linewidth=2, marker='s', label='Product 2 (1.5 bar)')
    ax3.set_xlabel('Valve Position (0=Product1, 1=Product2)')
    ax3.set_ylabel('Flow Rate (m³/h)')
    ax3.set_title('Diverting Valve Flow Distribution')
    ax3.legend()
    ax3.grid(True, alpha=0.3)
    ax3.set_xlim(0, 1)

    # Plot 4: Temperature control simulation
    time_hours = np.array(data['simulation']['time']) / 3600
    ax4.plot(time_hours, data['simulation']['setpoint'],
             'r--', linewidth=2, label='Setpoint')
    ax4.plot(time_hours, data['simulation']['mixed_temperature'],
             'b-', linewidth=2, label='Actual')
    ax4.set_xlabel('Time (hours)')
    ax4.set_ylabel('Temperature (°C)')
    ax4.set_title('Temperature Control Response\nSetpoint Changes During Operation')
    ax4.legend()
    ax4.grid(True, alpha=0.3)
    ax4.set_xlim(0, 2)

    plt.tight_layout()
    plt.savefig('/Users/macmini/Desktop/github/sproclib/sproclib/unit/valve/ThreeWayValve_example_plots.png',
                dpi=300, bbox_inches='tight')

    # Additional detailed analysis
    fig2, ((ax5, ax6), (ax7, ax8)) = plt.subplots(2, 2, figsize=(16, 12))

    # Plot 5: Flow coefficient splitting
    positions_fine = np.linspace(0, 1, 101)
    cv_A = [180.0 * (1 - pos) for pos in positions_fine]
    cv_B = [180.0 * pos for pos in positions_fine]

    ax5.plot(positions_fine, cv_A, 'r-', linewidth=2, label='Path A (Hot/Inlet)')
    ax5.plot(positions_fine, cv_B, 'b-', linewidth=2, label='Path B (Cold/Outlet)')
    ax5.plot(positions_fine, np.array(cv_A) + np.array(cv_B),
             'k--', linewidth=2, label='Total Cv')
    ax5.set_xlabel('Valve Position')
    ax5.set_ylabel('Flow Coefficient Cv (gpm/psi^0.5)')
    ax5.set_title('Flow Coefficient Distribution')
    ax5.legend()
    ax5.grid(True, alpha=0.3)

    # Plot 6: Pressure drop sensitivity
    pressure_drops = np.linspace(0.5, 5.0, 10)  # 0.5 to 5 bar
    flows_pd = []
    for dp in pressure_drops:
        flow = 180.0 * 0.5 * 6.309e-5 * np.sqrt(dp * 1e5 / 890.0) * 3600  # m³/h at 50% position
        flows_pd.append(flow)

    ax6.plot(pressure_drops, flows_pd, 'purple', linewidth=2, marker='d')
    ax6.set_xlabel('Pressure Drop (bar)')
    ax6.set_ylabel('Flow Rate (m³/h)')
    ax6.set_title('Flow vs Pressure Drop\n(50% Position, Single Path)')
    ax6.grid(True, alpha=0.3)

    # Plot 7: Valve position during control
    ax7.plot(time_hours, np.array(data['simulation']['valve_position']),
             'orange', linewidth=2)
    ax7.set_xlabel('Time (hours)')
    ax7.set_ylabel('Valve Position')
    ax7.set_title('Valve Position During Control\n(0=Hot, 1=Cold)')
    ax7.grid(True, alpha=0.3)
    ax7.set_xlim(0, 2)
    ax7.set_ylim(0, 1)

    # Plot 8: Split ratio analysis for diverting valve
    split_ratios = []
    for i in range(len(data['diverting']['positions'])):
        p1 = data['diverting']['product1_flows'][i]
        p2 = data['diverting']['product2_flows'][i]
        if p2 > 0:
            ratio = p1 / p2
        else:
            ratio = 0
        split_ratios.append(ratio)

    ax8.semilogy(data['diverting']['positions'], split_ratios,
                 'brown', linewidth=2, marker='*')
    ax8.set_xlabel('Valve Position')
    ax8.set_ylabel('Flow Ratio (Product1/Product2)')
    ax8.set_title('Flow Split Ratio (Log Scale)\nDiverting Valve')
    ax8.grid(True, alpha=0.3)
    ax8.set_xlim(0, 1)

    plt.tight_layout()
    plt.savefig('/Users/macmini/Desktop/github/sproclib/sproclib/unit/valve/ThreeWayValve_detailed_analysis.png',
                dpi=300, bbox_inches='tight')

    print("\nPlots saved:")
    print("- ThreeWayValve_example_plots.png")
    print("- ThreeWayValve_detailed_analysis.png")

Results

=================================================================
THREE-WAY VALVE - INDUSTRIAL EXAMPLE
Reactor Feed Temperature Control - Hot/Cold Stream Mixing
=================================================================

MIXING VALVE SPECIFICATIONS:
-----------------------------------
Configuration: mixing
Max Cv per path: 180.0 gpm/psi^0.5
Dead Time: 1.5 s
Time Constant: 3.0 s
State Variables: ['valve_position', 'flow_out']

MIXING APPLICATION - PROCESS CONDITIONS:
---------------------------------------------
Hot Stream: 120.0 °C at 4.5 bar
Cold Stream: 25.0 °C at 4.2 bar
Target Mixed: 85.0 °C at 1.8 bar
Fluid Density: 890.0 kg/m³

TEMPERATURE MIXING CALCULATION:
-----------------------------------
Required Hot Fraction: 0.632
Required Cold Fraction: 0.368
Valve Position: 0.368

MIXING VALVE PERFORMANCE ANALYSIS:
----------------------------------------
Position | Hot% | Cold% | Hot Flow | Cold Flow | Total | Mixed T
         |      |       | (m³/h)   | (m³/h)    | (m³/h)| (°C)
----------------------------------------------------------------------
     0.0 |  100 |     0 |    712.1 |       0.0 | 712.1 |   120.0
     0.1 |   91 |     9 |    640.9 |      67.1 | 708.0 |   111.0
     0.2 |   81 |    19 |    569.7 |     134.3 | 703.9 |   101.9
     0.3 |   71 |    29 |    498.4 |     201.4 | 699.9 |    92.7
     0.4 |   61 |    39 |    427.2 |     268.5 | 695.8 |    83.3
     0.5 |   51 |    49 |    356.0 |     335.7 | 691.7 |    73.9
     0.6 |   41 |    59 |    284.8 |     402.8 | 687.6 |    64.4
     0.7 |   31 |    69 |    213.6 |     469.9 | 683.6 |    54.7
     0.8 |   21 |    79 |    142.4 |     537.1 | 679.5 |    44.9
     0.9 |   11 |    89 |     71.2 |     604.2 | 675.4 |    35.0
     1.0 |    0 |   100 |      0.0 |     671.3 | 671.3 |    25.0

=================================================================
DIVERTING VALVE APPLICATION - PRODUCT DISTRIBUTION
=================================================================

DIVERTING VALVE SPECIFICATIONS:
-----------------------------------
Configuration: diverting
Max Cv per path: 120.0 gpm/psi^0.5

DIVERTING PROCESS CONDITIONS:
-----------------------------------
Feed Pressure: 5.0 bar
Product 1 Pressure: 2.0 bar
Product 2 Pressure: 1.5 bar
Product Density: 950.0 kg/m³

DIVERTING VALVE PERFORMANCE:
-----------------------------------
Position | Product1 | Product2 | Total  | Split Ratio
         | (m³/h)   | (m³/h)   | (m³/h) | (P1:P2)
-------------------------------------------------------
     0.0 |    484.3 |      0.0 |  484.3 |      inf
     0.1 |    435.9 |     52.3 |  488.2 |     8.33
     0.2 |    387.5 |    104.6 |  492.1 |     3.70
     0.3 |    339.0 |    156.9 |  496.0 |     2.16
     0.4 |    290.6 |    209.3 |  499.9 |     1.39
     0.5 |    242.2 |    261.6 |  503.7 |     0.93
     0.6 |    193.7 |    313.9 |  507.6 |     0.62
     0.7 |    145.3 |    366.2 |  511.5 |     0.40
     0.8 |     96.9 |    418.5 |  515.4 |     0.23
     0.9 |     48.4 |    470.8 |  519.3 |     0.10
     1.0 |      0.0 |    523.1 |  523.1 |     0.00

ENGINEERING VALIDATION:
-------------------------
Target temperature: 85.0 °C
Required position: 0.368
Achieved flow: 697.1 m³/h
Mass balance error: 0.00e+00 m³/s

CONTROL SCENARIO SIMULATION:
-----------------------------------
Temperature control during process upset
RMS Temperature Error: 1.29 °C
Max Temperature Error: 1.36 °C
Position Range: 0.316 - 0.421

VALVE DESCRIPTIONS:
-------------------------
Mixing Valve - Type: ThreeWayValve
Applications: Stream mixing in chemical reactors, Flow diversion for different process units
Diverting Valve - Type: ThreeWayValve
Applications: Stream mixing in chemical reactors, Flow diversion for different process units

=================================================================
EXAMPLE COMPLETED - Check plots for visual analysis
=================================================================

Plots saved:
- ThreeWayValve_example_plots.png
- ThreeWayValve_detailed_analysis.png

Process Behavior

Sensitivity Analysis

References

1. ANSI/ISA-75.25.01: Test Procedure for Control Valve Response Measurement

2. EEUA Guidelines: Three-Way Control Valves - Selection and Sizing

3. Crane Technical Paper 410: Flow of Fluids Through Valves, Fittings, and Pipe
